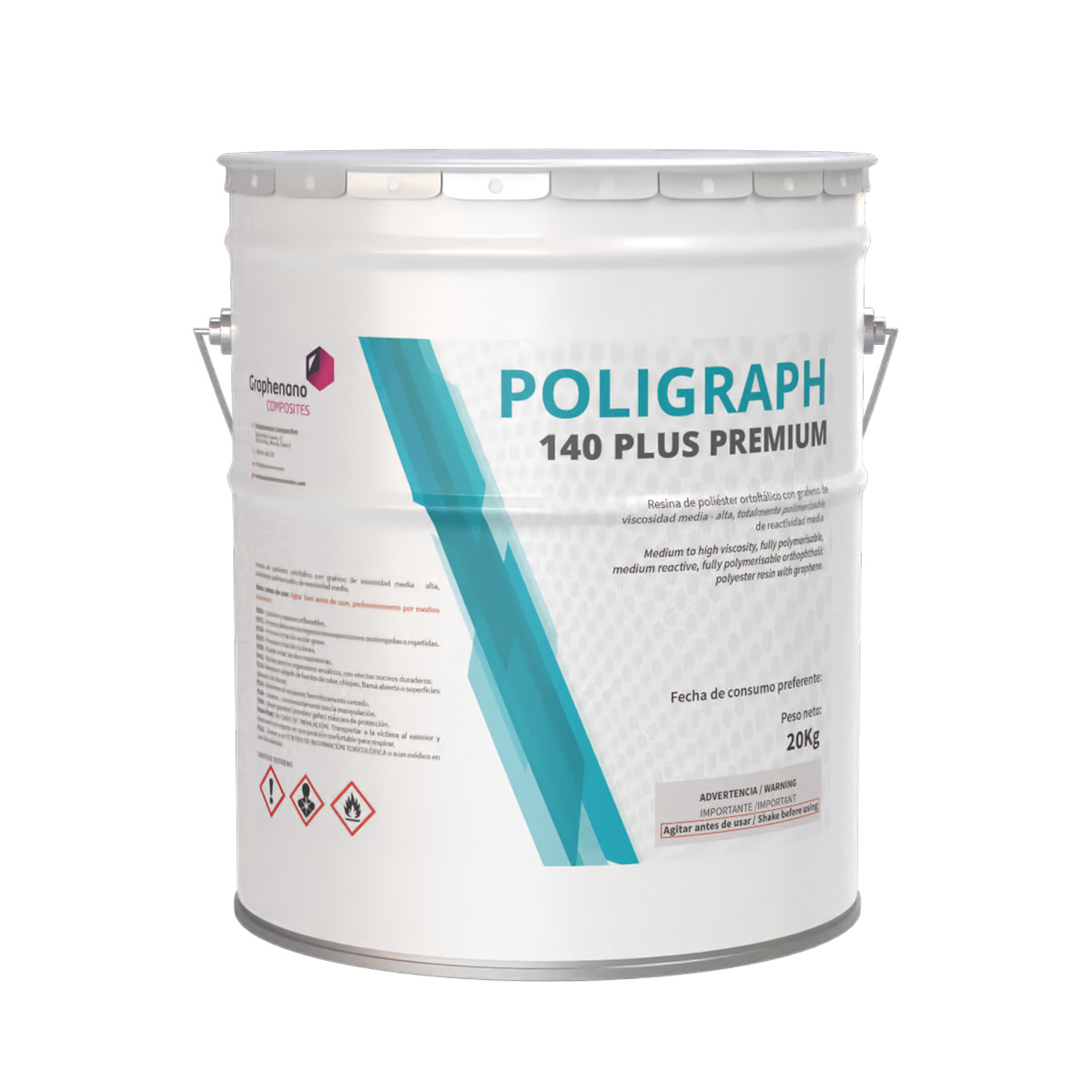

Poligraph 140 Plus Premium Resin

• Fast curing cycle.



• Fully compatible with pigments.



• High mechanical properties.



• Improves thermal conductivity.

• Designed as a base resin for work with fibreglass or injection resins.
• Good interlayer adhesion and very low linear and volumetric shrinkage.
• Inert mineral fillers such as calcium carbonates, calcium sulphates, dolomite, or silica can be added.
• The percentage of MEKP (methyl ethyl ketone peroxide) that should be added is between 0.75% and 1%, although it can be increased up to 2% to reduce gel time.
• The application can be done manually or by machine.
• May be used in pultrusion processes.

• The product must be stored in a dry place at a temperature not exceeding 25ºC.
• Its expiry date is 4 months under these conditions.

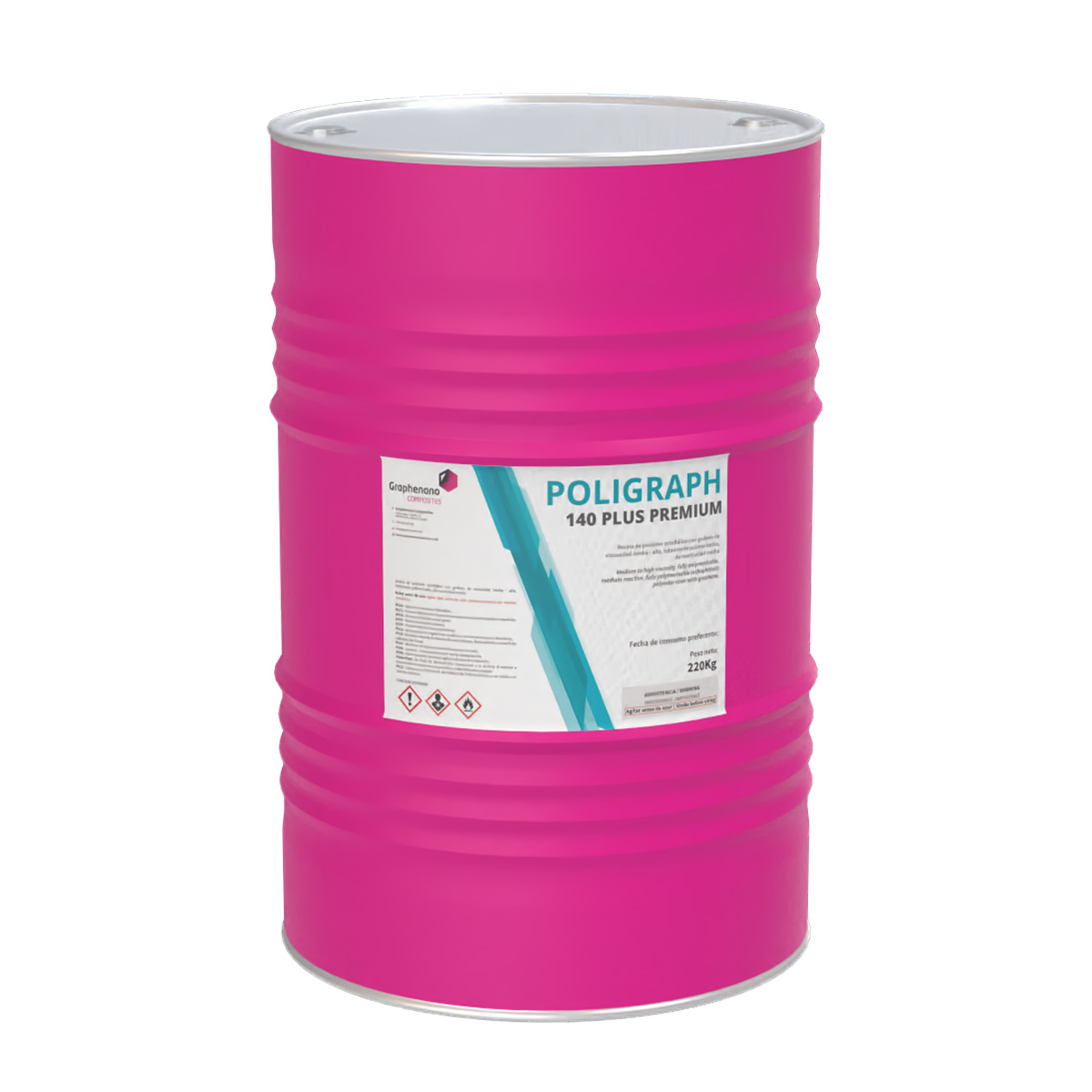

• Generally, products will be supplied in drum format.
• For other quantities, please contact us.

• Peak exothermic temperature (in 45 min): 53 ºC



• Density: 1.66 cm³



• Gel time (25ºC) (100/0.3 CO/0.6 PMEK): 10 – 15 min



• Brookfield viscosity (H2V30, 25ºC): 600 – 1,200 cps

• Flexural modulus: 10,100 – 11,900 MPa

• Flexural strength: 35 – 55 MPa
• Maximum flexural deflection: 0.35 – 0.55 mm

• Tensile modulus: 6,500 – 7,500 MPa
• Tensile strength: 25 – 45 MPa

• Elongation at break: 0.25 – 0.45 %

Mechanical properties of catalysed resin

• Flexural modulus: ≈ 57,000 MPa
• Flexural strength: ≈ 1,200 MPa
• Maximum flexural deflection: ≈ 5.60 mm
• Tensile modulus: ≈ 22,700 MPa
• Tensile strength: ≈ 700 MPa
• Elongation at break: ≈ 5.6 %

Mechanical properties of resin reinforced with fibreglass (75%)
